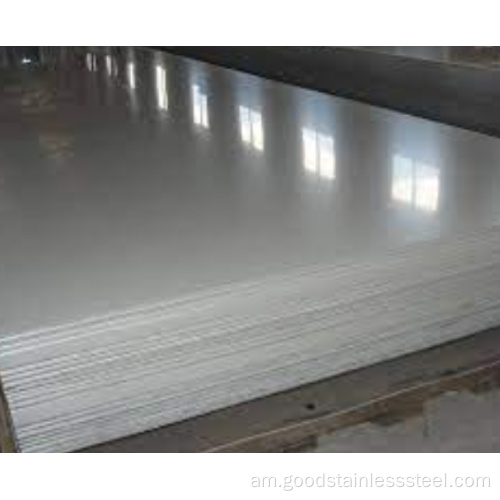

201 201 ያልታጠበ ብረት ሳህን

Width(mm)

60 mm-2500 mm or customized

Certifications

BV, ISO, SGS and other third inspections

Material

201, 202, 301, 302, 303, 304, 304L, 316, 316L, 316N, 321, 309S, 310S, 317L, 904L, 409L

Standard sheet sizes(mm)

1000*2000, 1250*2500, 1219*2438, 1500*3000 and other sizes as customer's requests.

Delivery time

Within 7 days in stock, 15-20 days for producing.

Iron, Fe

72

Chromium, Cr

16.0 - 18.0

Manganese, Mn

5.50 - 7.50

Nickel, Ni

3.50 - 5.50

Silicon, Si

1.0

Nitrogen, N

0.25

Carbon, C

0.15

Tensile strength (transverse at room temperature)

685 MPa

99400 psi

Tensile strength (longitudinal at room temperature)

696 MPa

101000 psi

Yield strength (transverse at room temperature)

292 MPa

42400 psi

Yield strength (longitudinal at room temperature)

301 MPa

43700 psi

Compressive yield strength

365 MPa

52900 psi

Elastic modulus

197 GPa

28573 ksi

Poisson's ratio

0.27-0.30

0.27-0.30

Elongation at break (longitudinal at room temperature)

56%

56%

Elongation at break (transverse at room temperature)

62.50%

62.50%

Hardness, Rockwell B (transverse at room temperature)

85

85

Hardness, Rockwell B (longitudinal at room temperature)

85

85
